SpringBoot MSA (6) - API Gateway Service Filter

이전 게시물의 apigateway-service의 application.yml 파일에서 등록한 라우트 정보를 주석하여

자바코드로 설정정보를 처리해보자.



application.yml 주석처리

server:
  port: 8000

eureka:
  client:
    register-with-eureka: false
    fetch-registry: false
    service-url:
      defaultZone: http://localhost:8761/eureka

spring:
  application:
    name: apigateway-service
#  cloud:
#    gateway:
#      routes:
#        - id: first-service
#          uri: http://localhost:8081/
#          predicates:
#            - Path=/first-service/**
#        - id: second-service
#          uri: http://localhost:8082/
#          predicates:
#            - Path=/second-service/**



config 패키지 생성 및 해당 패키지에 FilterConfig.java 파일 생성



FilterConfig.java 에 application.yml에 주석처리했던 라우팅 정보 설정

package com.example.apigatewayservice.config;

import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.route.builder.RouteLocatorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class FilterConfig {

    @Bean
    public RouteLocator gatewayRoutes(RouteLocatorBuilder builder) {
        return builder.routes()
                .route(r -> r.path("/first-service/**")
                             .filters(f -> f.addRequestHeader("first-request", "first-request-header")
                                            .addResponseHeader("first-response", "first-response-header"))
                             .uri("http://localhost:8081"))
                .route(r -> r.path("/second-service/**")
                        .filters(f -> f.addRequestHeader("second-request", "second-request-header")
                                .addResponseHeader("second-response", "second-response-header"))
                        .uri("http://localhost:8082"))
                .build();
    }
}



first-service, second-service 프로젝트에 새로운 테스트용 api 메소드 추가

filters에 추가한 요청, 응답 헤더 정보를 확인할 수 있는 API



FirstServiceController.java

package com.example.firstservice;

import lombok.extern.log4j.Log4j;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestHeader;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

// http://localhost:8081/welcome
// http://localhost:8081/first-service/welcome
@RestController
@RequestMapping("/first-service")
@Slf4j
public class FirstServiceController {

    @GetMapping("/welcome")
    public String welcome() {
        return "Welcome to the First Service";
    }

    @GetMapping("/message")
    public String message(@RequestHeader("first-request") String header) {
        log.info(header);
        return "Hello World in First Service.";
    }
}

SecondServiceController.java

package com.example.secondservice;

import lombok.extern.log4j.Log4j;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestHeader;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

// http://localhost:8082/welcome
// http://localhost:8082/second-service/welcome
@RestController
@RequestMapping("/second-service")
@Slf4j
public class SecondServiceController {

    @GetMapping("/welcome")
    public String welcome() {
        return "Welcome to the Second Service";
    }

    @GetMapping("/message")
    public String message(@RequestHeader("second-request") String header) {
        log.info(header);
        return "Hello World in Second Service.";
    }

}

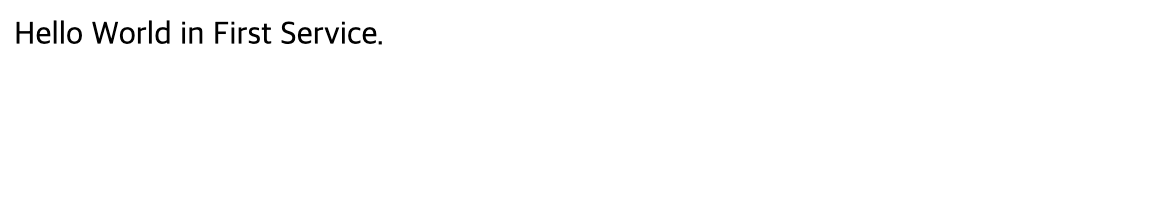

처리 결과

http://localhost:8000/first-service/message

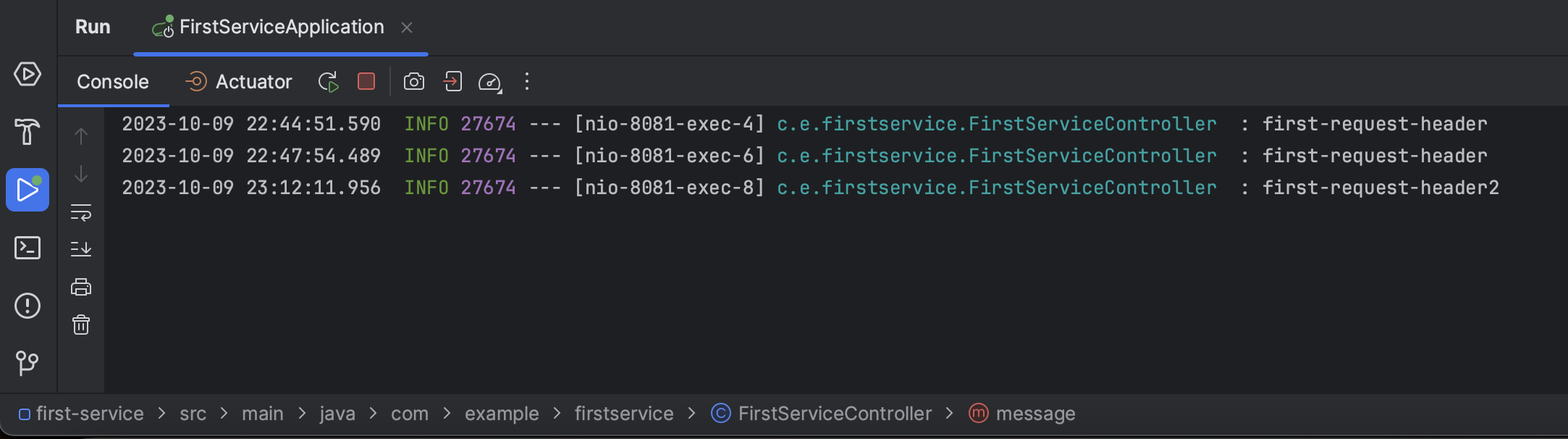

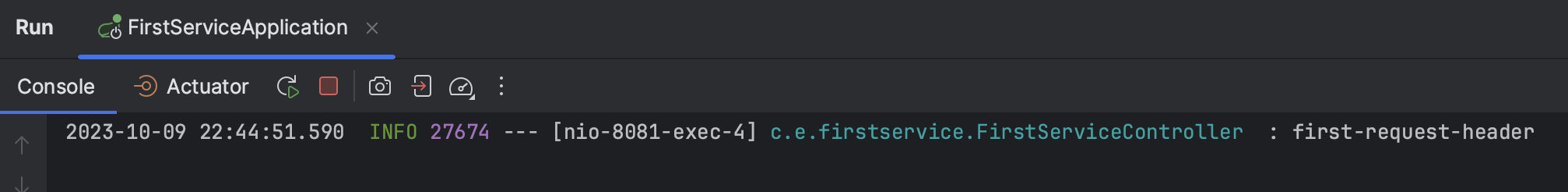

filter에 설정했던 first-reqeust-header가 출력되고 있다.

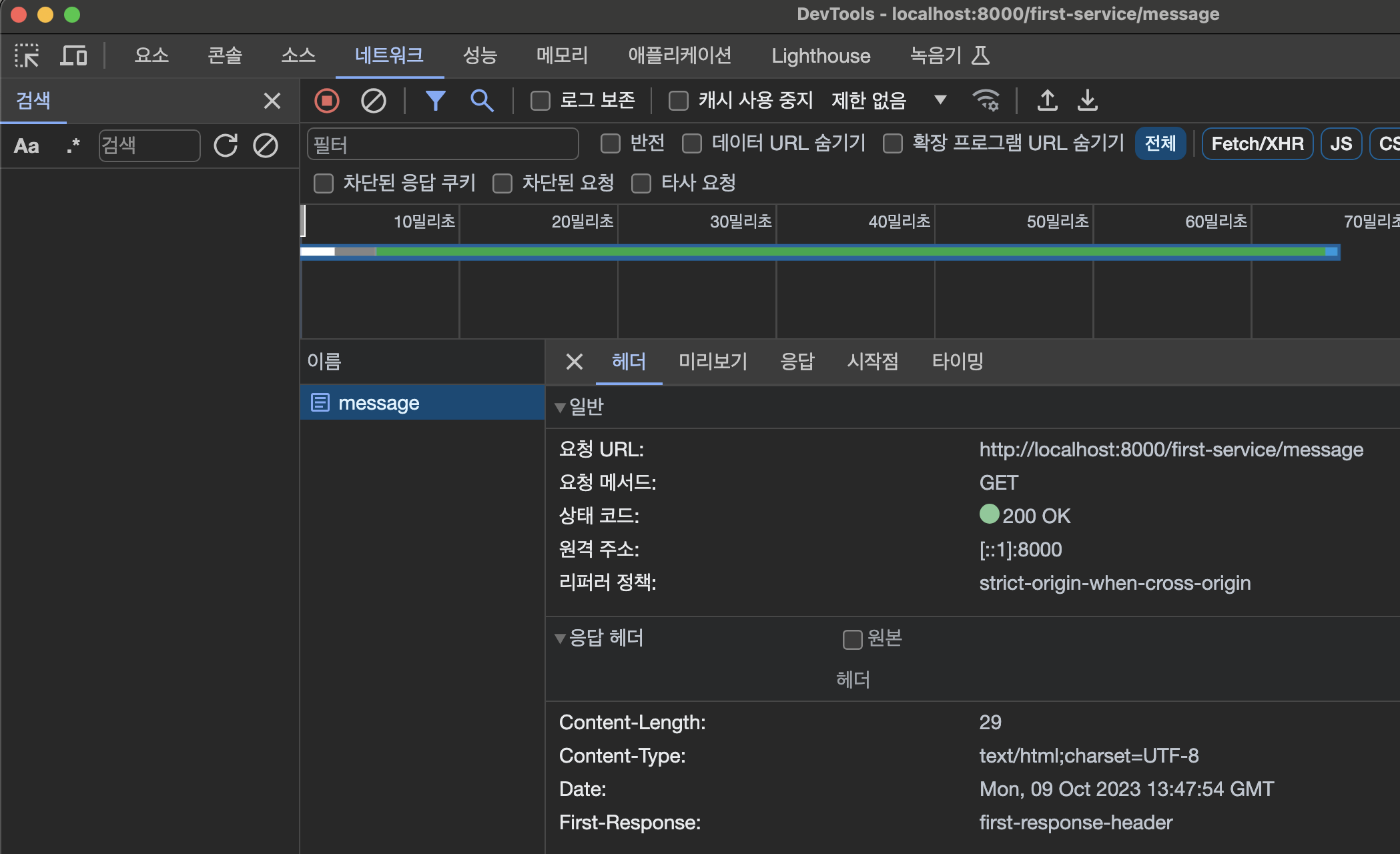

response-header 정보도 개발자 도구로 확인 가능하다!

하지만

application.yml에서도 filters에 설정한 요청, 응답 헤더정보를 추가할 수 있다.



우선 @Configuration, @Bean을 주석처리하여 application.yml에 설정해보자.



FilterConfig.java 어노테이션 주석처리

package com.example.apigatewayservice.config;

import org.springframework.cloud.gateway.route.RouteLocator;
import org.springframework.cloud.gateway.route.builder.RouteLocatorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

//@Configuration
public class FilterConfig {

//    @Bean
    public RouteLocator gatewayRoutes(RouteLocatorBuilder builder) {
        return builder.routes()
                .route(r -> r.path("/first-service/**")
                             .filters(f -> f.addRequestHeader("first-request", "first-request-header")
                                            .addResponseHeader("first-response", "first-response-header"))
                             .uri("http://localhost:8081"))
                .route(r -> r.path("/second-service/**")
                        .filters(f -> f.addRequestHeader("second-request", "second-request-header")
                                .addResponseHeader("second-response", "second-response-header"))
                        .uri("http://localhost:8082"))
                .build();
    }
}



application.yml 주석 해제 및 filters 응답, 요청 헤더 정보 설정

server:
  port: 8000

eureka:
  client:
    register-with-eureka: false
    fetch-registry: false
    service-url:
      defaultZone: http://localhost:8761/eureka

spring:
  application:
    name: apigateway-service
  cloud:
    gateway:
      routes:
        - id: first-service
          uri: http://localhost:8081/
          predicates:
            - Path=/first-service/**
          filters:
            - AddRequestHeader=first-request, first-request-header2
            - AddResponseHeader=first-response, first-response-header2
        - id: second-service
          uri: http://localhost:8082/
          predicates:
            - Path=/second-service/**
          filters:
            - AddRequestHeader=second-request, second-request-header2
            - AddResponseHeader=second-response, second-response-header2

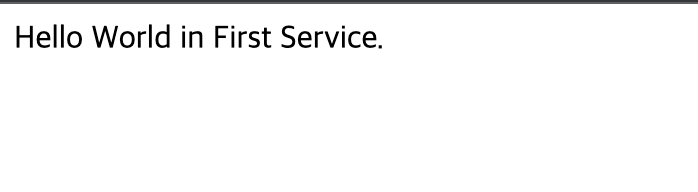

서버 재실행 후 확인

http://localhost:8000/first-service/message

동일하게 작동되는 것을 확인할 수 있습니다.
